Slitting Overview

Power/mation provides a tremendous amount of flexibility and reliability to our narrow web slitting customers. Power/mation will help you keep up on short runs and properly maintain unwind and rewind processes. Our suppliers’ uniquely suited products allow these needs to be met.

Slitting

Featured Products

Slitting
MAGPOWR TS Load Cells
  • Low profile design allows maximum web widths
  • Multiple mounting options for maximum flexibility
  • Three coupling styles for use with any type idler roll
  • Ruggedly constructed for long life and dependability
  • Mechanical overload stops for protection even under severe overloads
  • Full Wheatstone bridge design for measurement accuracy
  • Inch and Metric models for international installations
  • Load cell mounting styles available: Stud Mount, Pillow Block, or Flange Mount
Slitting
MAGPOWR Brakes & Clutches

Versatility and flexibility are the real benefits found in MAGPOWR’s Global Series Magnetic Particle Brakes, as they provide smooth, repeatable, controllable torque independent of speed. See the extended line of products here.

Slitting
Roll-2-Roll Technologies Web Sensors

Roll-2-Roll Sensors can measure edge position, contrast position, position of a line on the web, web width, count and monitor threads of any material without the need for any setup or calibration. The sensing principle relies on light scattering and spatial filtering properties of fiber optics to accurately determine the web position. The web position sensor is essentially an affordable vision based sensing system different web sensing applications. Learn more from Roll-2-Roll Technologies.

Slitting
Turck Linear Encoder

Turck’s linear position sensors are available in a variety of sensing technologies that provide a designer with a variety of options when deciding which solution best fits the application.

Inductive linear position sensors are non-contact sensors using the R-L-C principle of operation, with measuring ranges up to 1,000 mm.

Magnetic linear position sensors are non-contact sensors using external magnets with imbedded hall effect sensors measuring ranges up to 200 mm.

Magnetostrictive linear position sensors are non-contact sensors using external magnets measuring ranges up to 300 in.

Draw wire (or cable pull) are mechanically operated devices with measuring ranges up to 40 m.

Slitting
Banner Engineering EZ Array Light Curtain
  • Make sure there is safe access to your cutting or slitting application with a light curtain.
  • IO-Link, Modbus-RTU, and RS-485 models are available
  • Applications include edge and center-guiding, loop tension control, hole sizing, parts counting and on-the-fly product sizing and profiling.
  • Closely spaced infrared beams detect objects as small as 5 mm wide edge resolution is 2.5 mm.
  • Controller functionality is built into the receiver, so basic setup requires no controller, software, or PC.
  • Easy-to-use software is included for advanced configuration, using a PC.
  • Configuration options include 14 measurement modes, three scanning methods, two analog and two discrete outputs and a serial output.
  • Range is 4 meters.
  • Array heights range from 150 to 2400 mm.
Slitting
Nexen Air Cooled Tension Control Clutches
  • Light to medium-duty
  • Air-cooled
  • Up to 3hp thermal capacity
Slitting
MAGPOWR Power Supplies and Amplifiers

Complete control is the goal of any operation utilizing brakes and clutches. MAGPOWR’s PS-24 & PS-90 Power Supplies provide a small amount of reverse current circuitry as a standard feature to minimize the drag torque of a clutch/brake, allowing greater controllability in the lowest torque range.

These power supply units control any size MAGPOWR clutch or brake with optimum resolution. MAGPOWR’s current-regulated power supplies are used for the control of magnetic particle clutches and brakes in unwind, rewind, or intermediate tension control applications. With selectable current ranges, these compact enclosures can be mounted inside the machine cabinet, allowing your operator to adjust torque through a remotely mounted potentiometer or with a 0 to 10 vdc control signal from MAGPOWR Open Loop and Closed Loop controllers, or any control device like a computer or PLC. See the options from MAGPOWR.

Slitting
Rittal Support Arm Systems

Support arm systems CP40/60/120/180 for use in the static load range from 400 to 1800 N. Endless combination possibilities, with a broad diversity of functions. Reliable cable protection in all applications. The support arm configurator is the perfect planning tool for fast, safe design of a support arm system to suit your application.

Slitting
Emerson Panel PC

Combining the modularity and flexibility to customize your product to your needs, the RXi Panel PC portfolio also packs in performance thanks to a dual core 1.0 GHz processor or a quad core 1.2GHz Processor with 4GB or 8GB of available DDR3 RAM. With Windows 10 IOT Enterprise LTSB OS installed standard, the RXi – Panel PC is ready to meet your software needs. A combination of design, durability and power packed into an ultra-slim package make it perfect for a wide range of applications.

Slitting
Emerson QuickPanel+
  • Plug and play connectivity
  • Designed for easy installation and configuration by automation engineers
  • Fully integrated view, control and data historian
  • Multi-touch for optimum responsiveness
  • Vivid images for more complete process visualization
  • Fully functional web browser with multimedia capability
  • Email and text alerts based on user-defined settings
  • Custom, web-enabled reports and graphs
  • Remote diagnostics and security
  • Compatibility with third-party components
Slitting
Horner XL4 Controller
  • Logic engine features 1MB of application memory with a 0.013mS/K logic scan.
  • Online Programming Mode (making logic changes on the fly without going through stop mode) is supported.
  • Operator Interface features include a 320×240 LCD TFT color graphics display with a high-resolution resistive touchscreen, 4 function keys, and a system key
  • A USB 2.0 On-the-Go port (mini-B 5pin) is available for programming.
  • A USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives.
  • One (1) RS-232 and one (1) 485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols.
  • Networking features include a built-in 10/100 Ethernet port, and an integrated CsCAN port.
  • All units feature a microSD slot, supporting at least 32GB.
Slitting

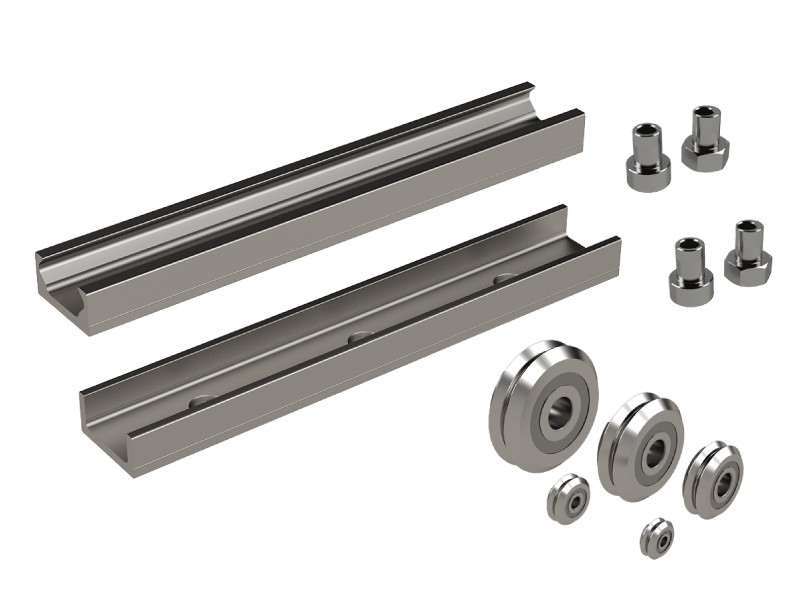

Bishop Wisecarver Linear Guide Systems

Bishop Wisecarver linear guide products are available in several sizes to accommodate loads of all types, from light to heavy. The BWC linear guide product offering is suitable for use in numerous applications, such as machine designs requiring incorporation of linear guide products into the machine structure. Motor mounts for linear guide products for applications that require a separate drive unit are also available. Carbon, stainless steel, and polymer versions are available to suit any application environment. See the products at Bishop Wisecarver.
